Description
Integrated Through Surface Wireless Charger
Charging range of 15-30mm – no routing < 25mm
The ARC-H through surface wireless charger offers the ultimate in charging convenience. With a charging range of 15-30mm, ARC-H can be installed without the need to rout into the underside of the surface for surface thicknesses up to 25mm.
Fast charge Samsung (10W) Apple (7.5W)
With 10W of charging power ARC-H is one of the fastest sub surface wireless chargers on the market, convenient for a quick boost or a full charge when you need it most.

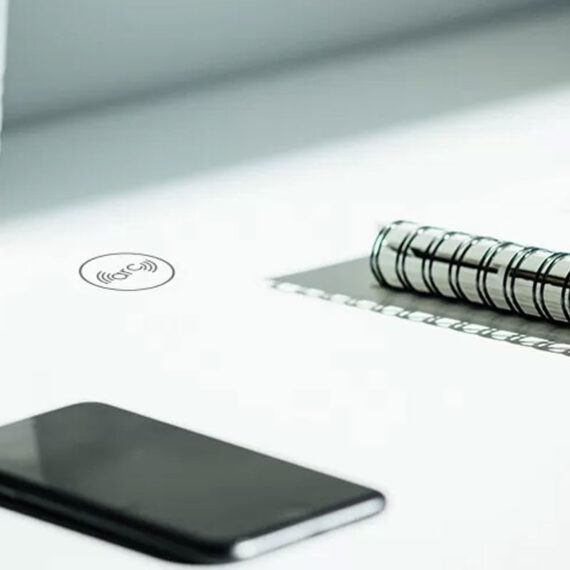

Hidden under surface for a clutter free workspace

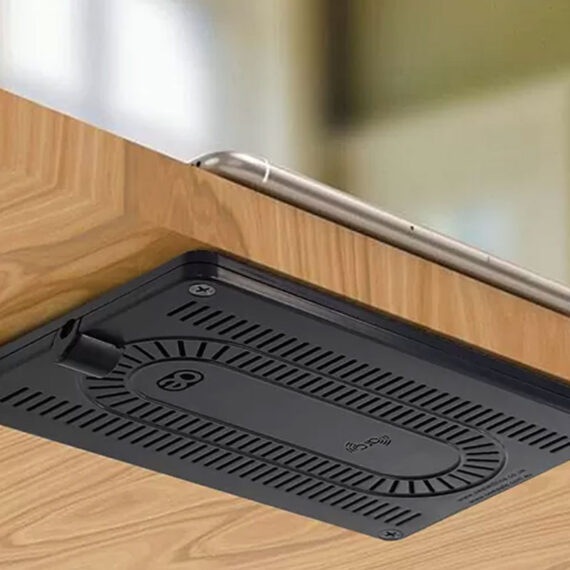

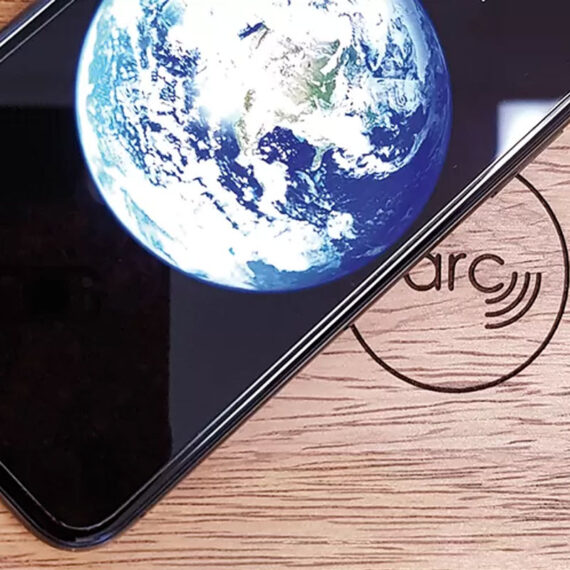

ARC-H is designed for the easiest of installations. Simply place the marker decal on the surface and using the unique magnet alignment method locate and secure the ARC-H charging module to the underside using screws that are suitable for the surface material. Once installed ARC-H is completely hidden requiring a simple decal to guide placement of mobiles on the surface.
Technical info
Input / Output Power
Output Power 10W (Max) Input Power (Charger) 19V / 0.94A
Dimension
154mm X 110mm X 10mm plus wings.
Net Weight
0.167kg
Frame Material & Colour
Polycarbonate (Black)
Valid Charging Distance
15-30mm
Horizontal Tolerance
± 15mm
Charging Mode
Compatible with Qi-BPP, iPhone and Samsung fast charging.
Protection
FOD, OTP, OVP
Certification
IEC 60950-1 (Safety) EN62311 (Health) EN 301 489-1, EN 301 489-3 (EMC)EN 303 417 (Radio)
ARC-H Wireless Fast Charger Specifications
Output Power
Up to 10W
Input Power (Charger)
19V/0.94A
Input Power (Plug Pack)
100-240 VAC, 0.7A
Standby Power
0.2W
Charging Z-Distance
15-30mm
Decal Sizes
40 and 80mm
Surface Thickness
15-30 mm (no routing required for standard surfaces up to 25mm thickness). Thicker surfaces will require under surface routing.
Certification
IEC 60950-1 (Safety) EN62311 (Health) EN 301 489-1, EN 301 489-3 (EMC)EN 303 417 (Radio)
Housing Material
Polycarbonate
In The Box
1 x ARC-H Wireless Charging Module
2 x Grey and 2 x Black 40 / 80mm Decals
3 x Cable Clips
1 x Alignment Magnet
1 x Alignment Template
1 x Power Adapter
1 x Installation Sheet
3M Tape on the Underside
Codes
Part No. 590560
Description ARC-H Sub Surface Wireless Charger
